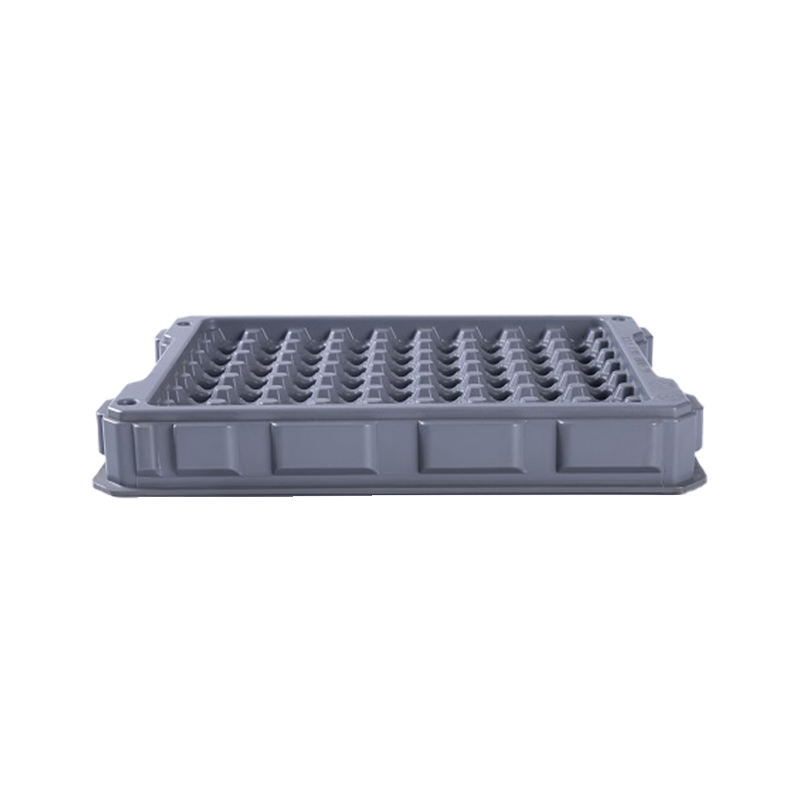

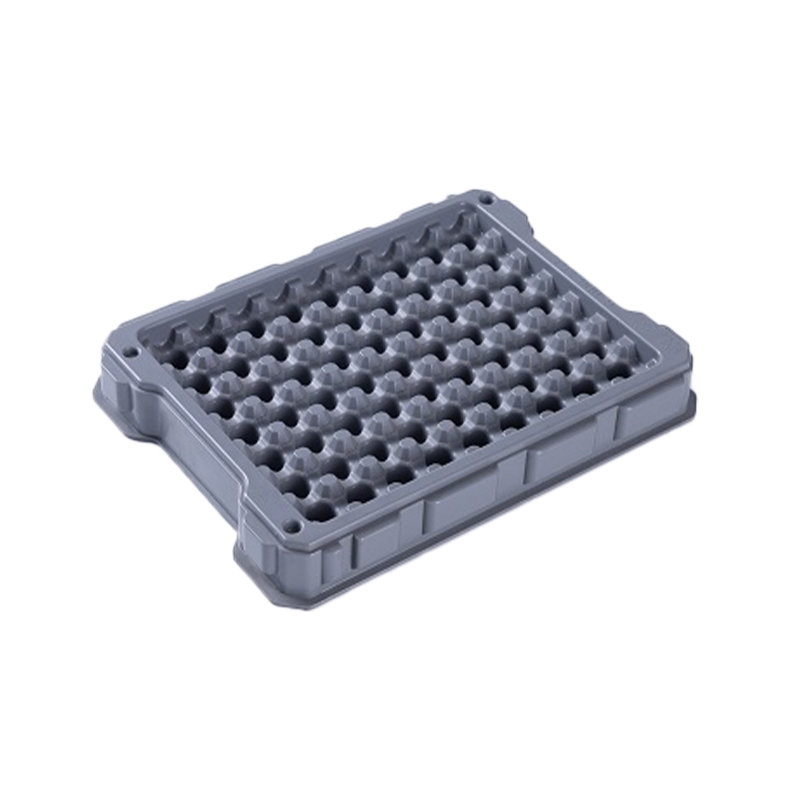

Vacuum Formed Plastic Auto Part Tray

Vacuum trays of high precision are suitable for automatic procuction lines.

The  antistatic value of products can be reached 10e5~10e11.

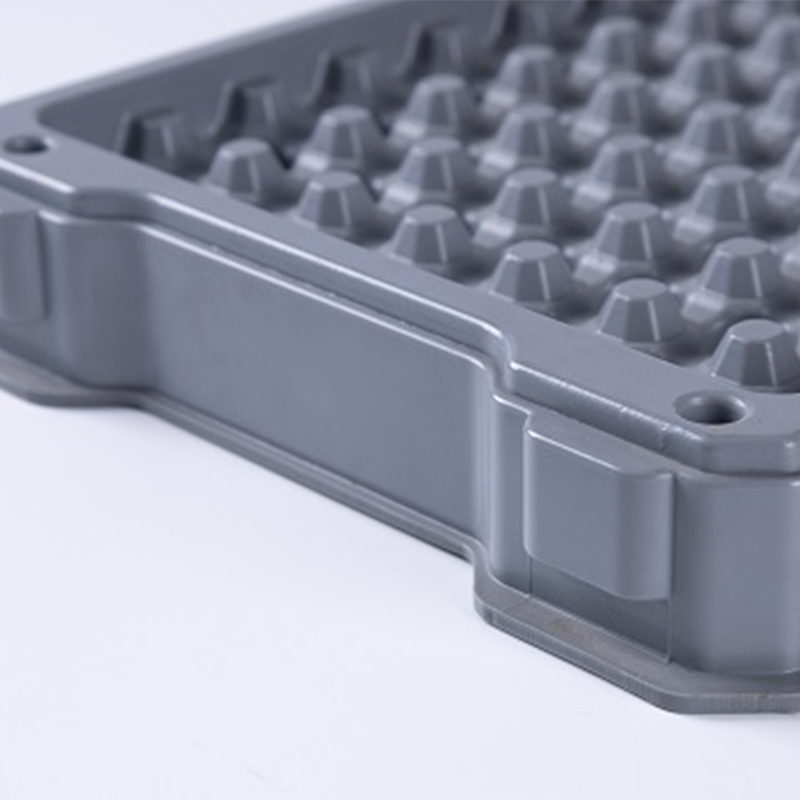

The thickness of product wall is about 3~4mm.

1. Product Overview

A vacuum formed tray is a highly efficient solution designed for the automotive industry. This Auto part tray is specifically manufactured to store, transport, and protect vehicle components such as dashboards, door panels, headlights, bumpers, and engine parts. With the advancement of vacuum forming technology, the vacuum auto part tray provides superior durability, lightweight properties, and cost-effectiveness.

The vacuum formed plastic tray is made from high-quality thermoplastic materials, including ABS, HIPS, PP, and PET. These materials make the vacuum formed tray resilient to impact, water, and chemicals, ensuring the Auto part tray maintains its structure even in challenging industrial environments. Unlike metal or wooden alternatives, the vacuum auto part tray is not only lightweight but also easy to handle, making it a preferred choice in modern supply chains.

2. Manufacturing Process of Vacuum Formed Plastic Tray

The production of a vacuum formed plastic tray involves several key steps:

1. Heating the Plastic Sheet – The plastic material is heated to a flexible state.

2. Vacuum Forming Process – The heated plastic is placed over a mold, and a vacuum draws the material tightly against the mold to shape the vacuum formed tray.

3. Cooling and Hardening – The formed plastic cools and retains its shape, solidifying into a functional vacuum auto part tray.

4. Trimming and Finishing – CNC machines cut excess material and create precise slots or holes to meet specific part storage needs in an Auto part tray.

5. Quality Inspection – Each vacuum formed plastic tray undergoes thorough testing to ensure strength, durability, and compliance with industry standards.

This manufacturing method allows for the production of vacuum auto part trays at a lower cost compared to injection molding while maintaining high quality and precision.

3. Material Selection and Benefits of Vacuum Formed Tray

The vacuum formed tray is crafted from thermoplastic materials tailored to specific industry needs:

• ABS (Acrylonitrile Butadiene Styrene) – This material gives the vacuum formed plastic tray high impact resistance and excellent durability, ideal for reusable Auto part trays.

• HIPS (High-Impact Polystyrene) – Provides a cost-effective alternative for disposable vacuum auto part trays.

• PP (Polypropylene) – Highly resistant to moisture and chemicals, making it suitable for sensitive automotive components stored in a vacuum formed tray.

• PET (Polyethylene Terephthalate) – Known for its transparency and recyclability, PET is often used in vacuum formed plastic trays where visibility is required.

Each material enhances the functionality of the vacuum auto part tray, ensuring optimal performance in automotive applications.

4. Applications of Vacuum Formed Plastic Trays in the Automotive Industry

The vacuum formed tray plays a vital role in different areas of automobile manufacturing and logistics:

(1) Storage and Handling on the Production Line

• The Auto part tray ensures efficient storage of components for seamless production processes.

• The vacuum auto part tray minimizes damage by securely holding parts in place.

(2) Automotive Logistics and Transportation

• The vacuum formed plastic tray protects components from shocks and vibrations during transit.

• The vacuum auto part tray optimizes space, allowing efficient stacking and reducing shipping costs.

(3) Automotive Aftermarket and Repair Centers

• The Auto part tray simplifies spare part management in workshops.

• The vacuum formed tray enhances organization in dealerships and service centers.

(4) High-Precision Custom Auto Components

• The vacuum formed plastic tray provides tailored solutions for fragile automotive parts.

• The vacuum auto part tray ensures safety for precision instruments and electronics.

5. Key Features and Advantages of Vacuum Auto Part Tray

• Perfect Fit for Auto Parts – Each vacuum formed tray is custom-designed to secure automotive components properly.

• Lightweight Yet Durable – The vacuum auto part tray offers a balance of strength and convenience for easy handling.

• Stackable Design for Space Efficiency – Many Auto part trays feature stackability, reducing warehouse and shipping costs.

• Eco-Friendly & Recyclable – The vacuum formed plastic tray is made from sustainable materials, supporting green initiatives.

• Waterproof & Chemical Resistant – The vacuum auto part tray is ideal for use in harsh industrial environments.

Conclusion

The vacuum formed tray is an essential component of the automotive industry, offering a cost-effective and efficient way to manage vehicle parts. The Auto part tray is widely adopted due to its lightweight, durability, and ease of customization.

As the automotive sector moves towards automation and smart logistics, the vacuum auto part tray will evolve with integrated RFID tracking and other advanced features. The vacuum formed plastic tray will remain a crucial part of the modern automotive supply chain, ensuring efficiency and sustainability.
